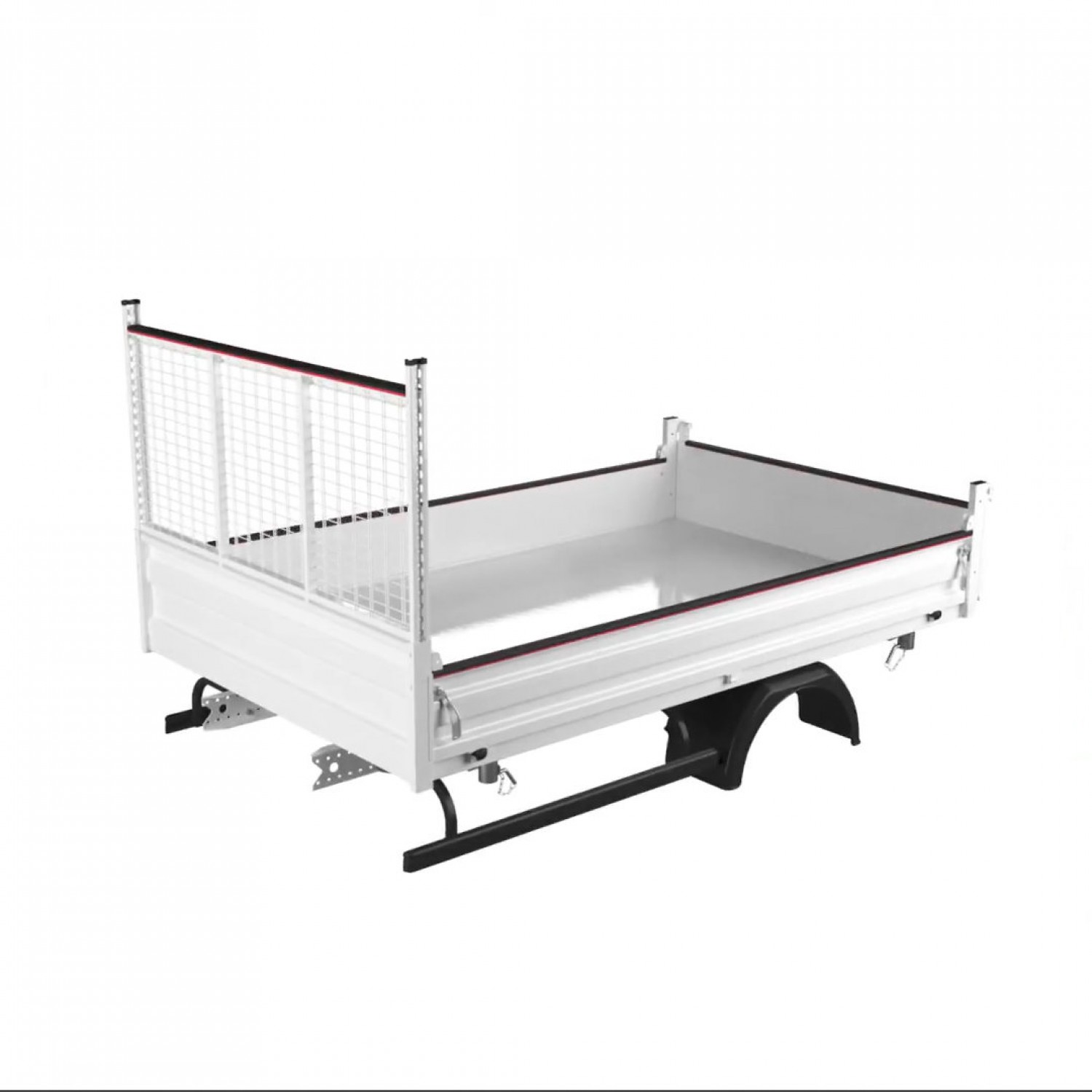

Enterprise Mixed Aluminum (3 Way Tipper)
- Availability: In Stock
Bodywork
* Tipper platform in high quality aluminum sheet: 5083 H111 thickness 4 mm* Rectangular tube side members height 120 or 140 mm (depending on compass) and longitudinal aluminum spacers

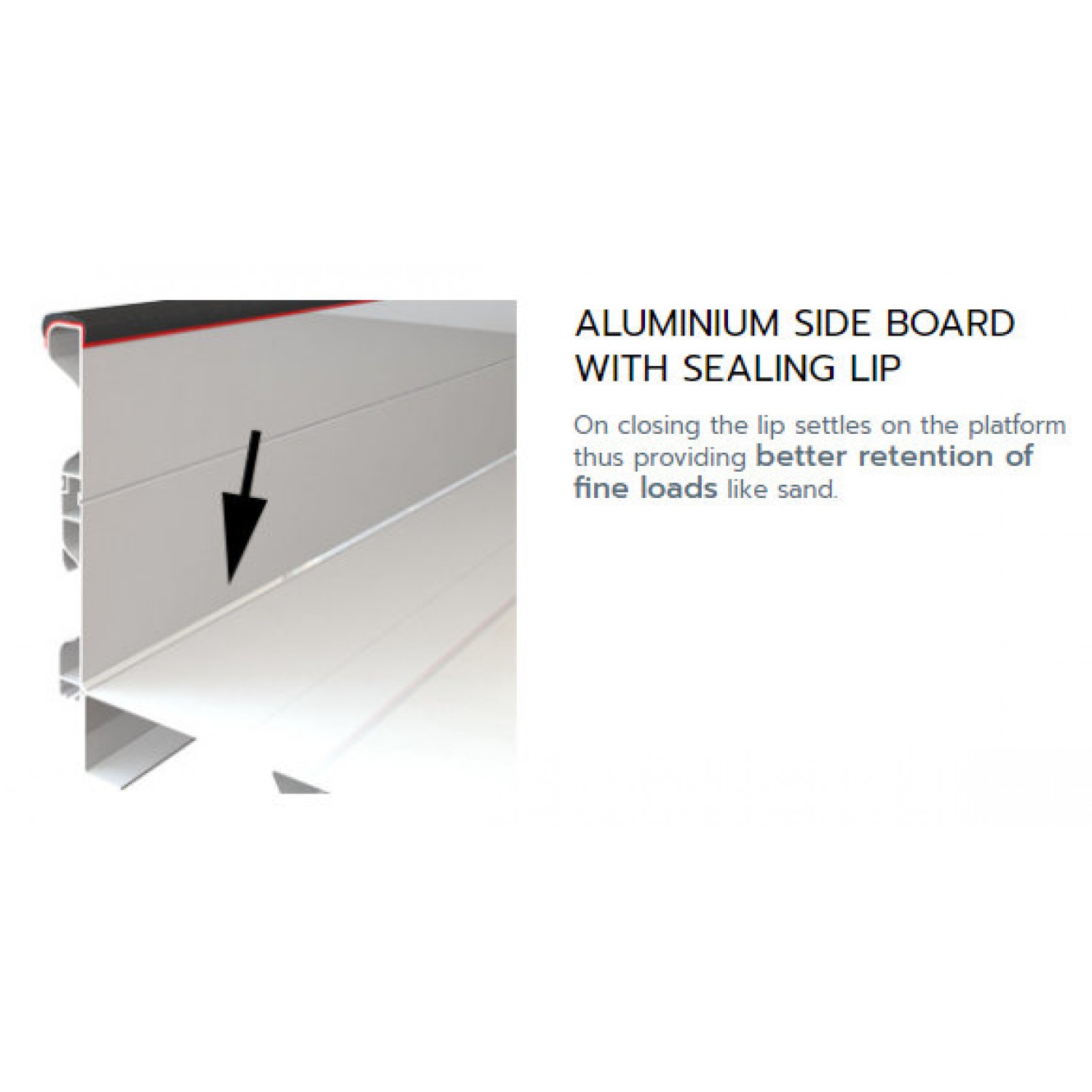

* Sideboards in tubular aluminum profile, height 400 mm, thickness 2.8 mm, fold-down, removable, interchangeable (right/left)
* 2 x 2 sideboards from exterior length 4300 mm
* Integrated closing of sideboards
* Front face, height 450 mm, thickness 2.8 mm

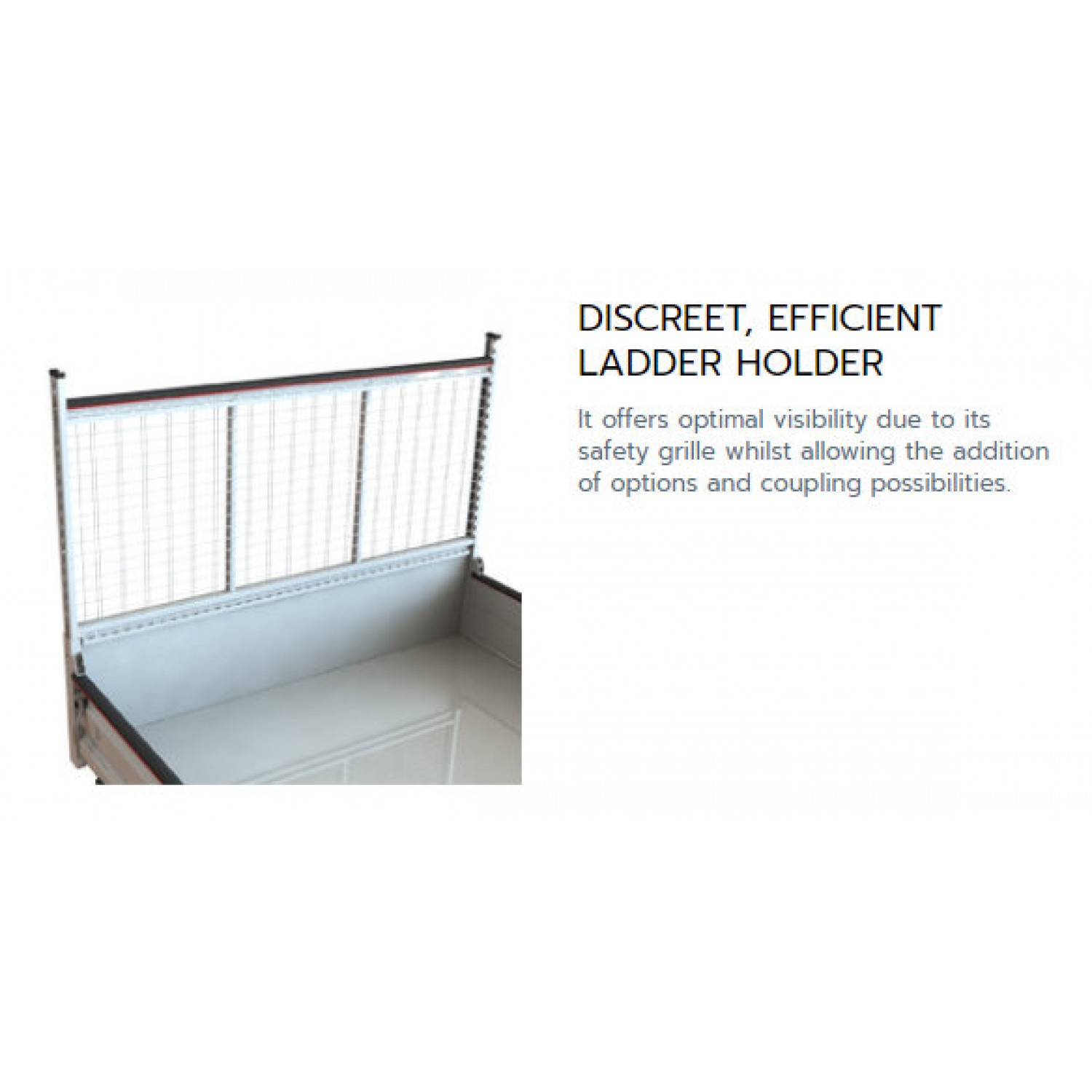

* Cab protection in galvanized steel grille (section 4.5 mm), removable

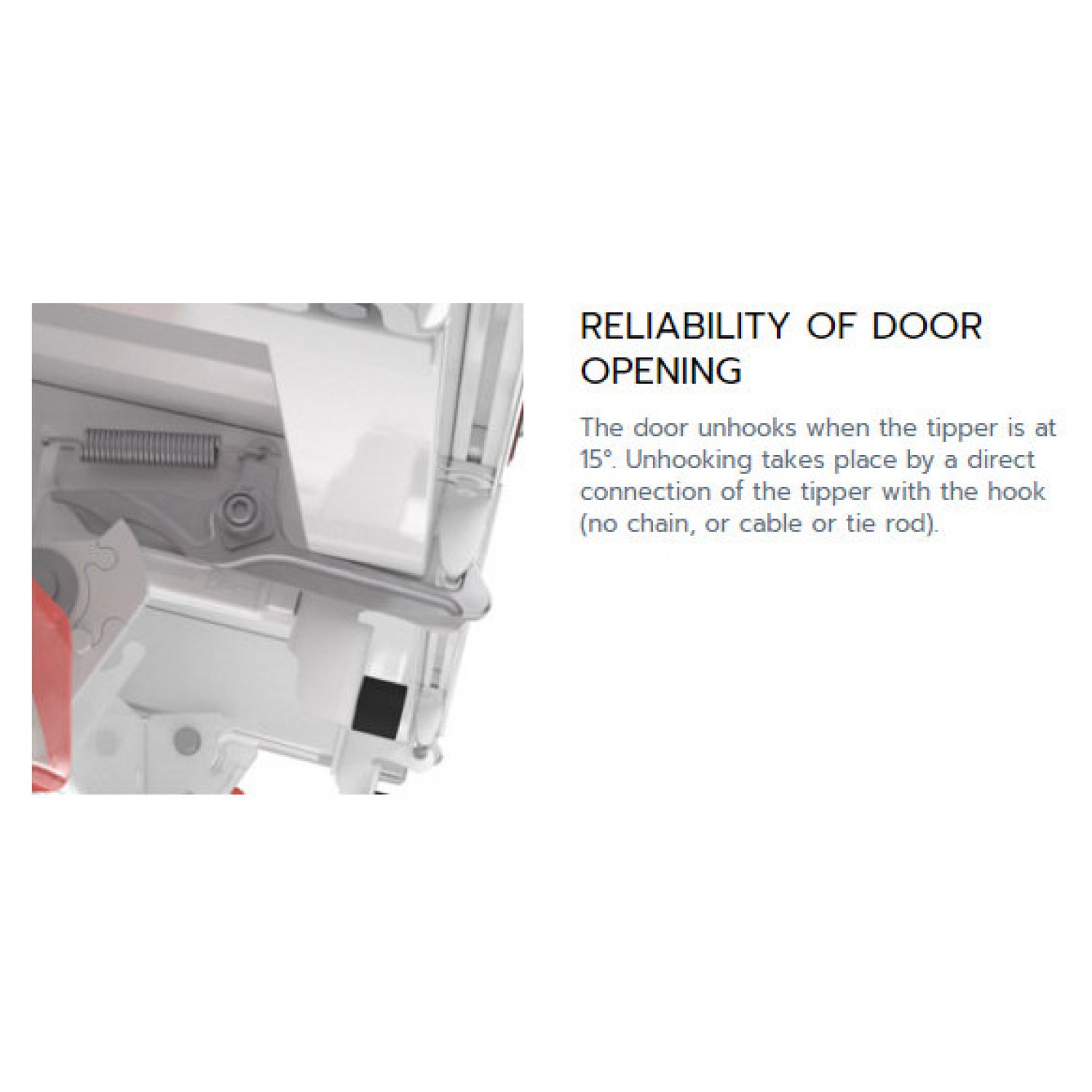

* Aluminum rear door, height 450 mm, thickness 2.8 mm, automatic opening (doorway 520 mm) by cam (doorway 520 mm) at 15°

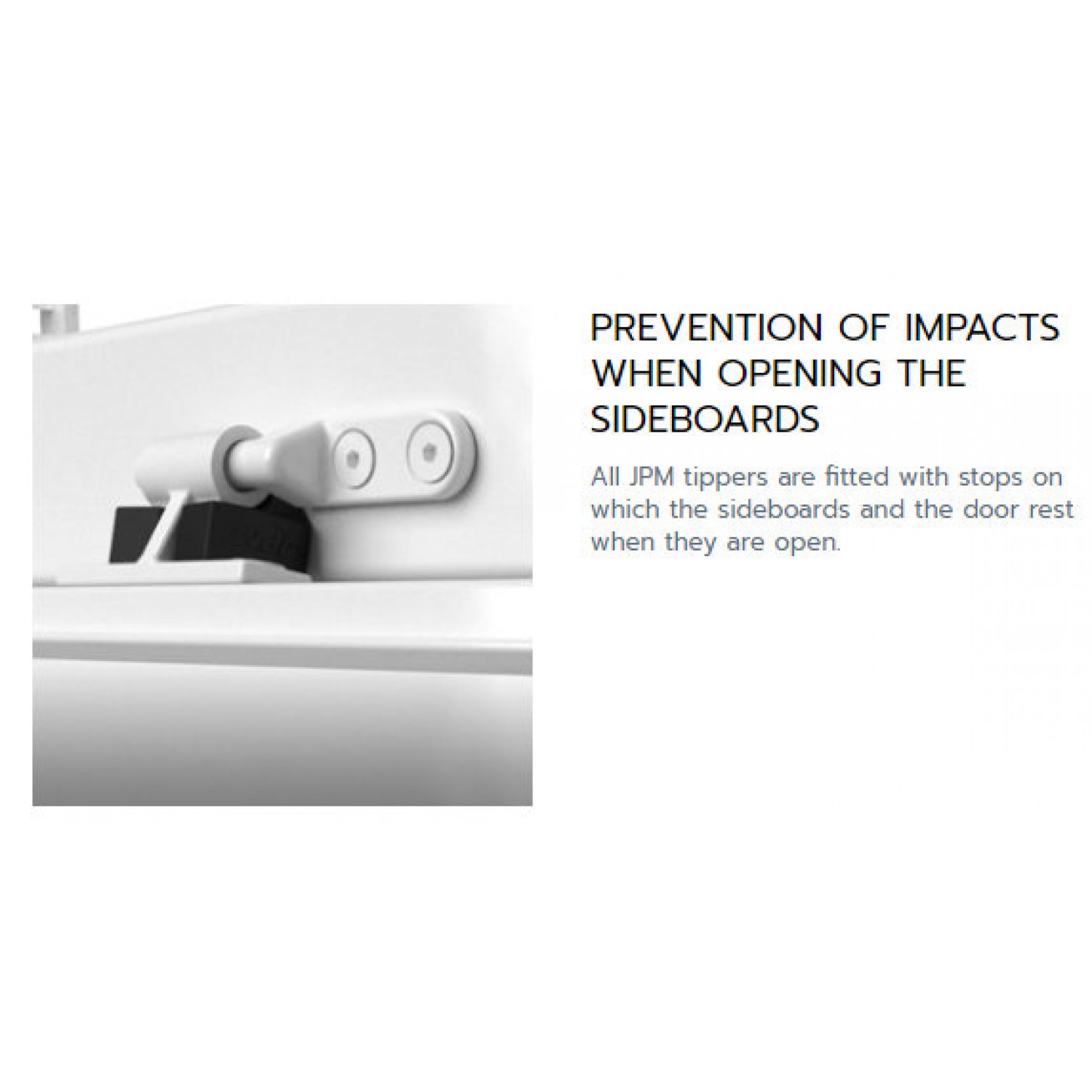

* Rubber opening stops on sideboards and rear door

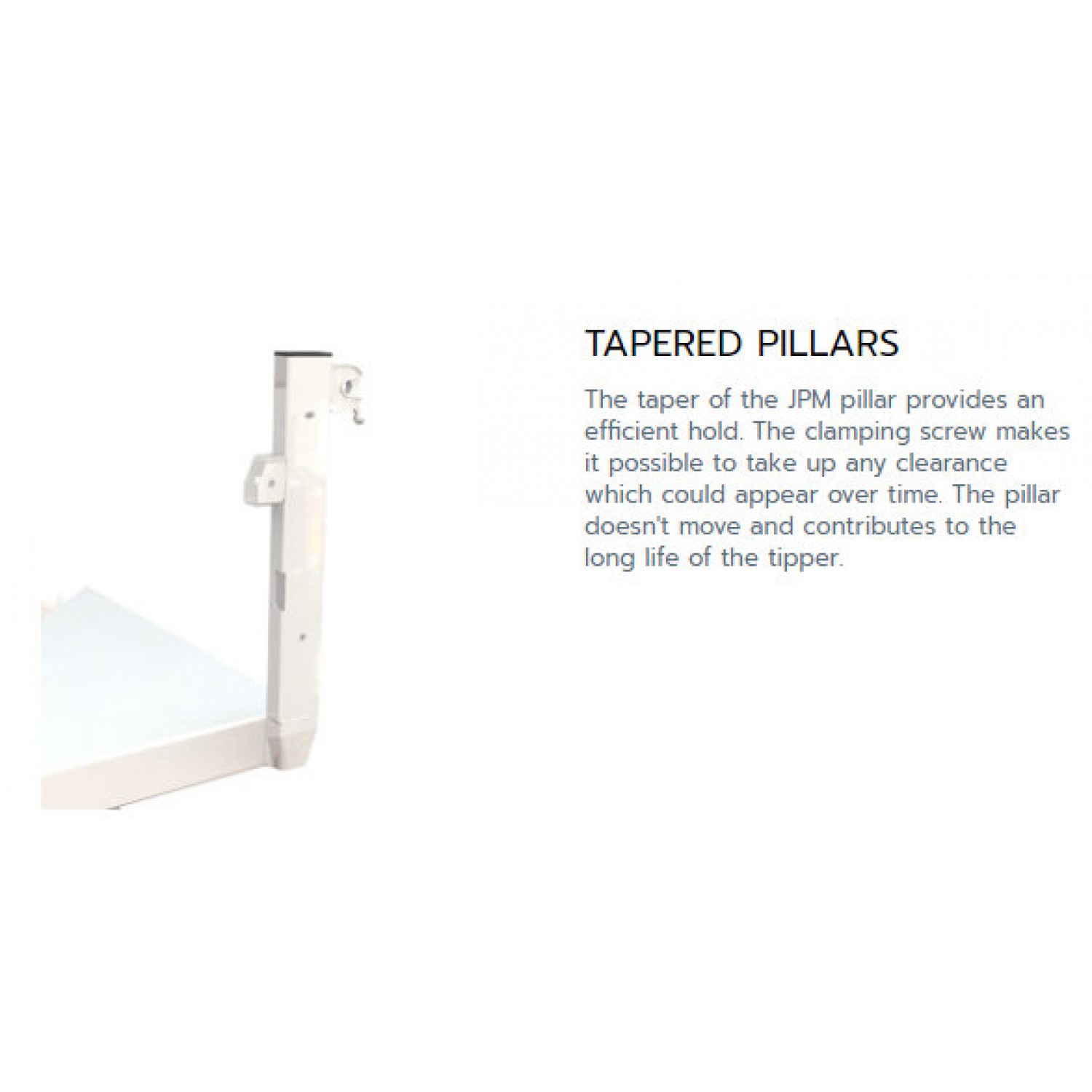

* Rear pillars in galvanized steel, thickness 3mm, removable, with 12 mm fixing bolt and conical fitting
* HDPE (High Density Polyethylene) wraparound mudguards with raw aluminum support
* Authorized aluminum side protections black powder paint
* Geomet treated bolts (5 times more resistant than standard galvanizing)
* Tipping on spherical roller bearings fitted with coded pins (avoiding any false maneuvers)

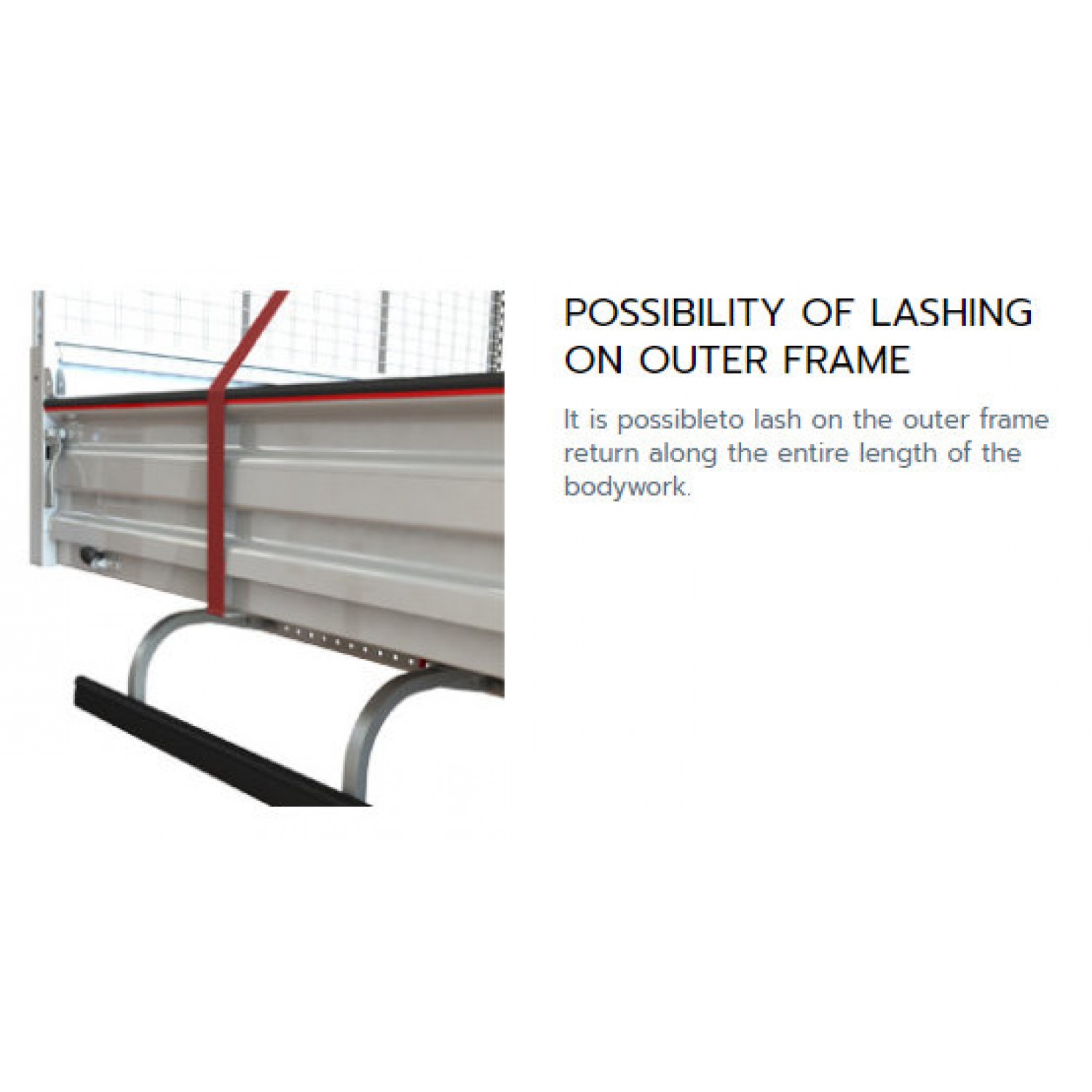

* Outer frame adapted to lashing
* Short dumping overhang: 330 mm
Subframe

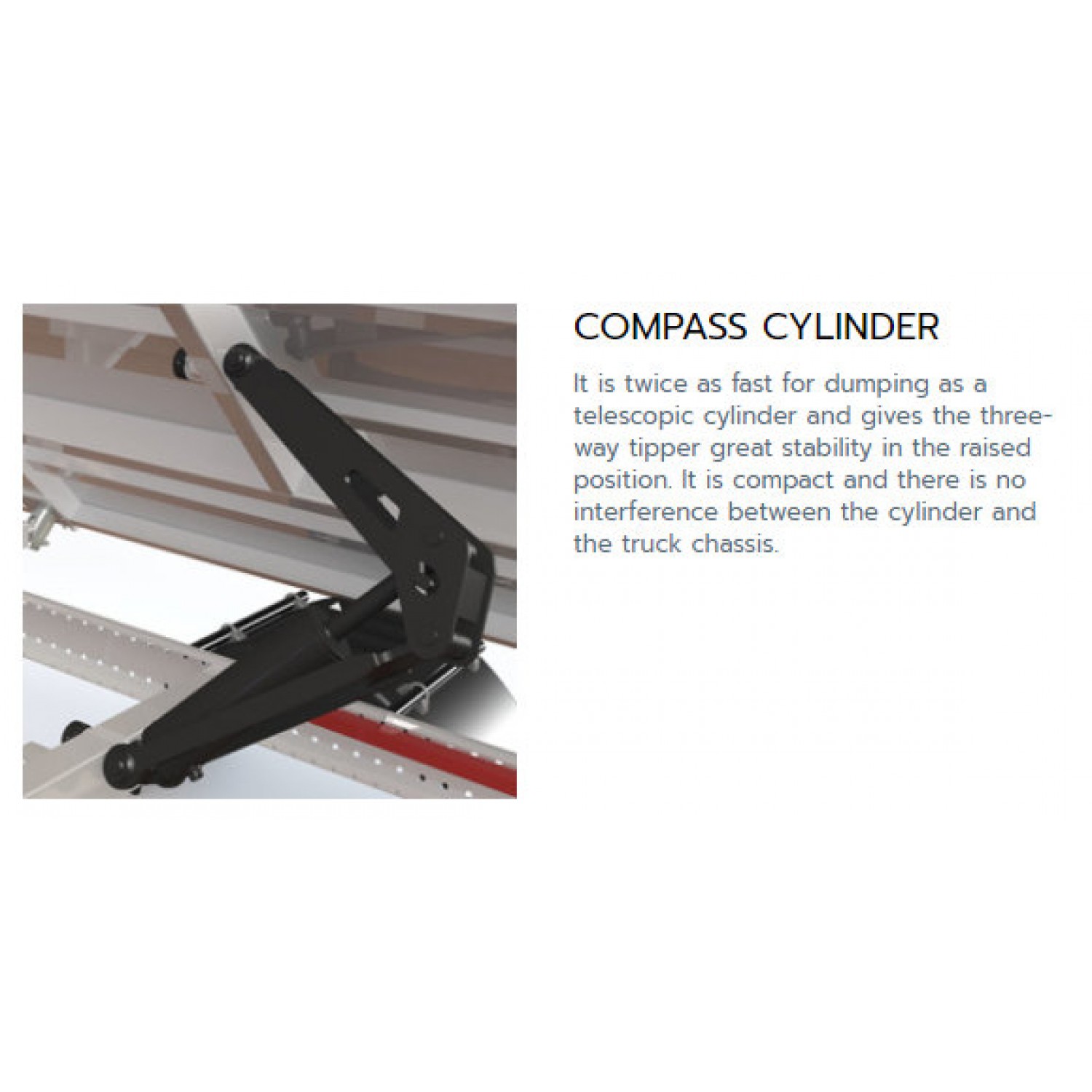

* Tipper in steel S355, thickness 4 mm or 5 mm depending on length* Tipping by COMPASS CYLINDER (no excess under subframe)
* 48° rear tilt angle
* Electrically driven pump unit 12 volts or 24 volts depending on the chassis
* 3 or 7 litre tank
* Hydraulic pressure 320 bars
* Wired remote control in cab
Safety
* Safety solenoid valve on cylinder* Circuit breaker
* Safety stand
Finish

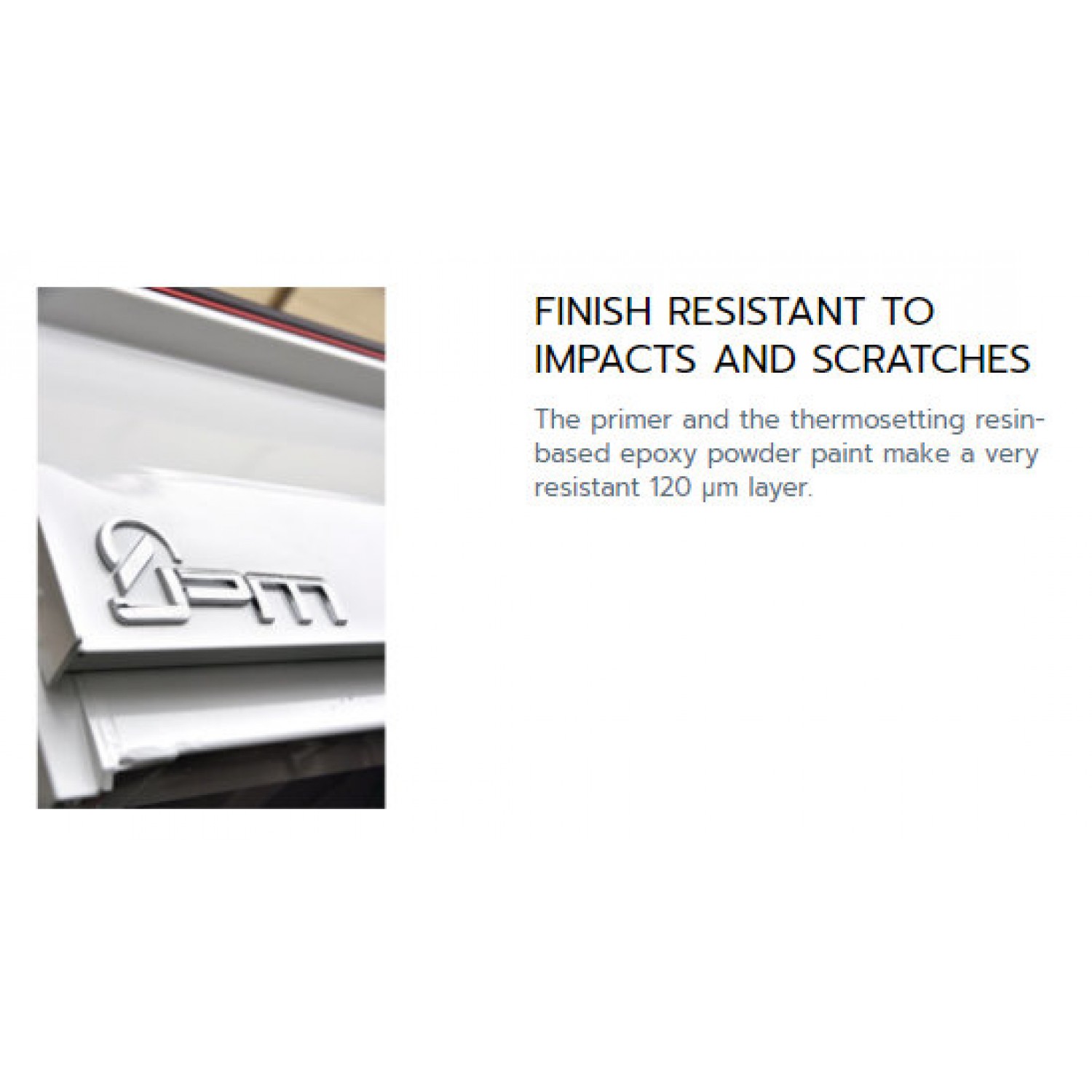

* Aluminum elements:* Shot blasting + 60 µm epoxy powder primer + 60 µm powder paint
* Steel elements (subframe):
* DKP sheet + Shot blasting + 60 µm epoxy powder primer + 60 µm powder paint
