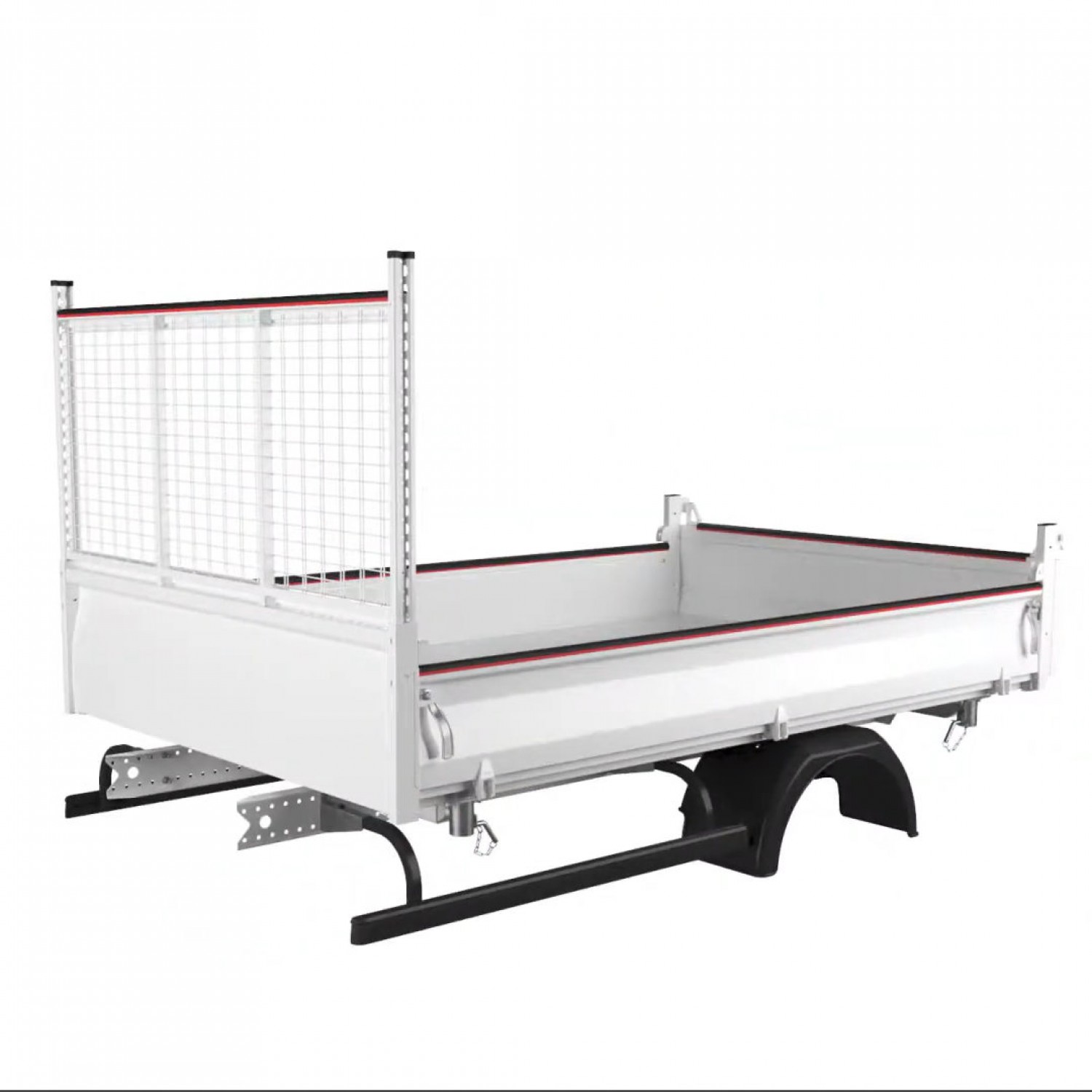

TP Steel (3 Way Tipper)
- Availability: In Stock

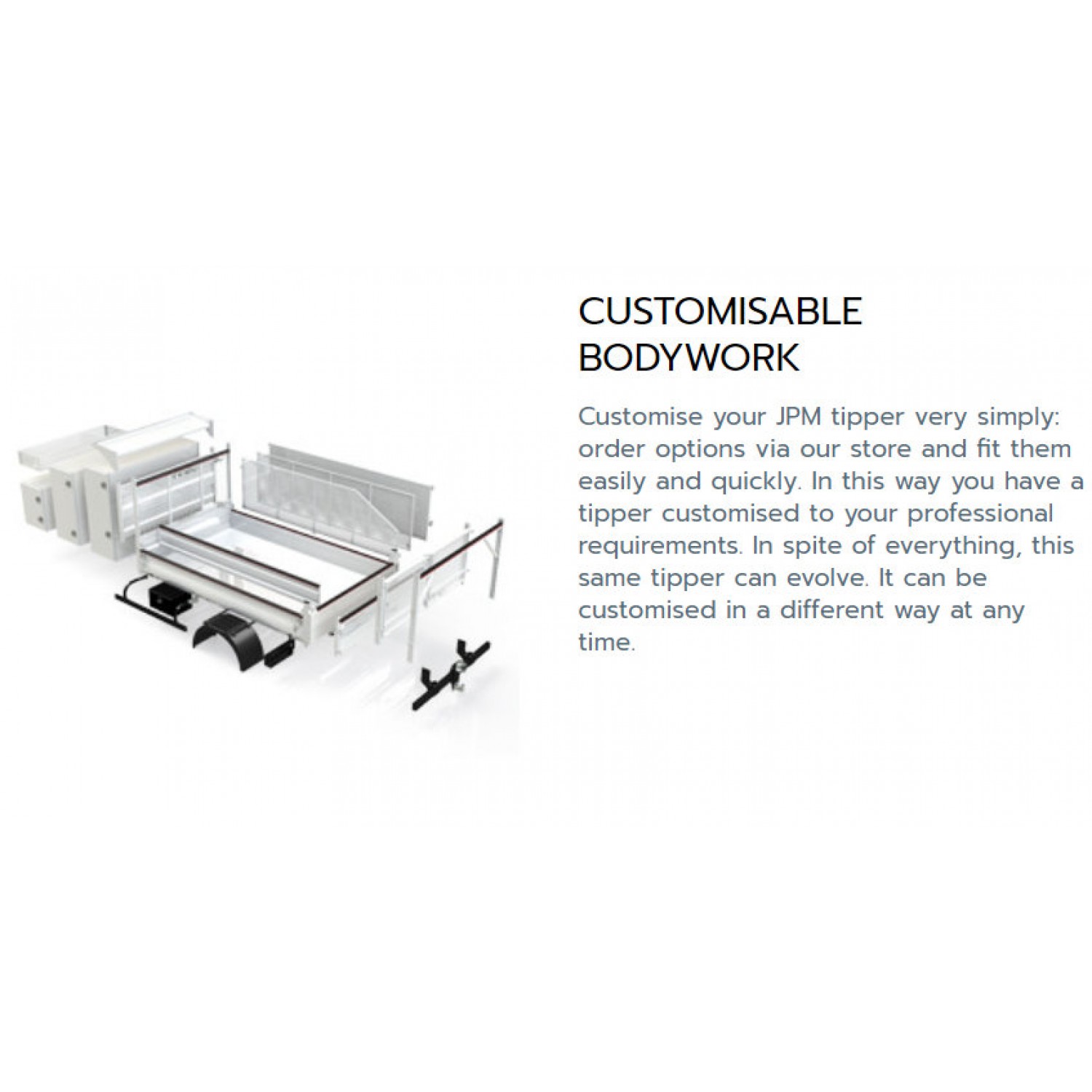

Bodywork
* Tipper platform in steel S355 sheet thickness 3 mm* Rectangular tube side members height 120 or 140 mm (depending on compass) and longitudinal spacers

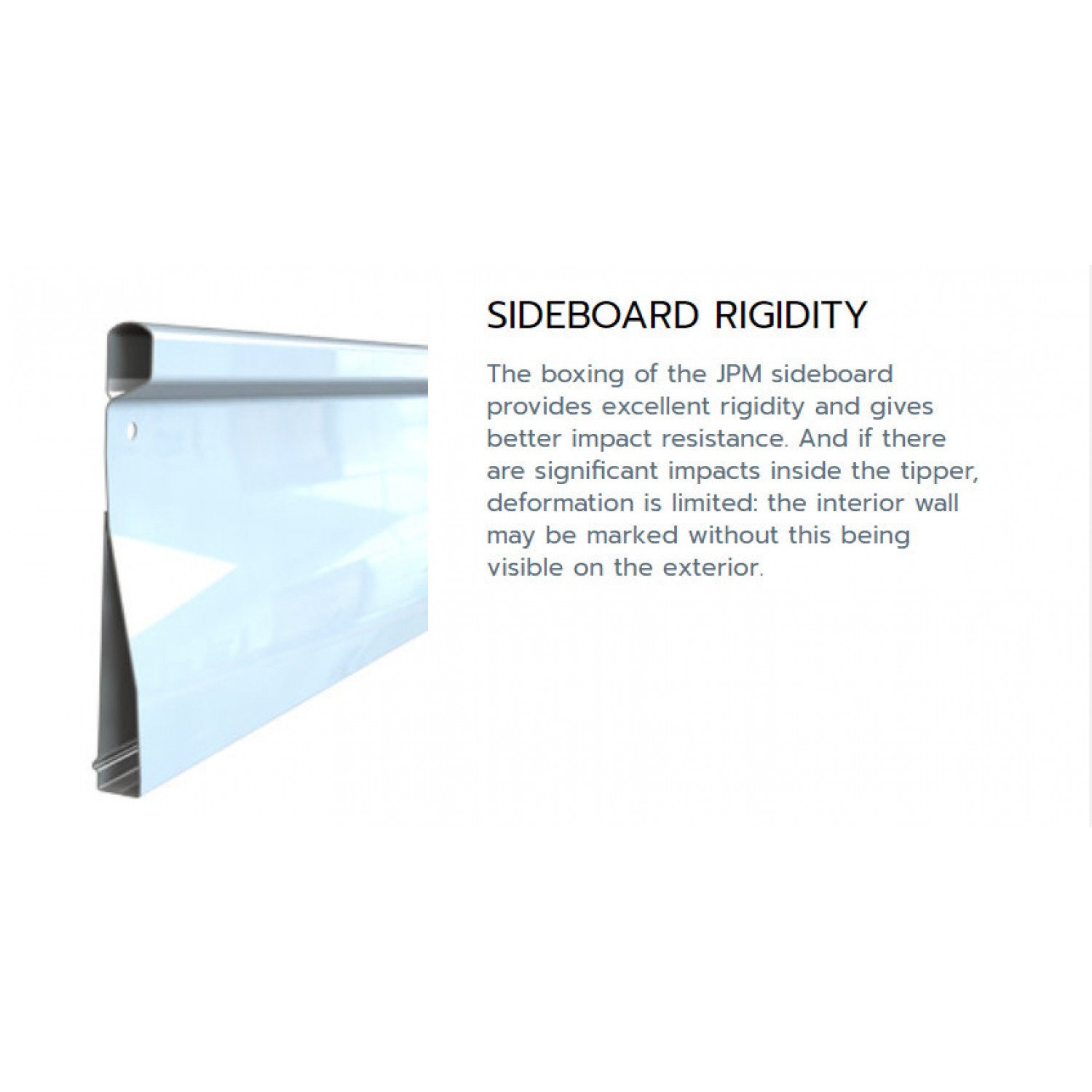

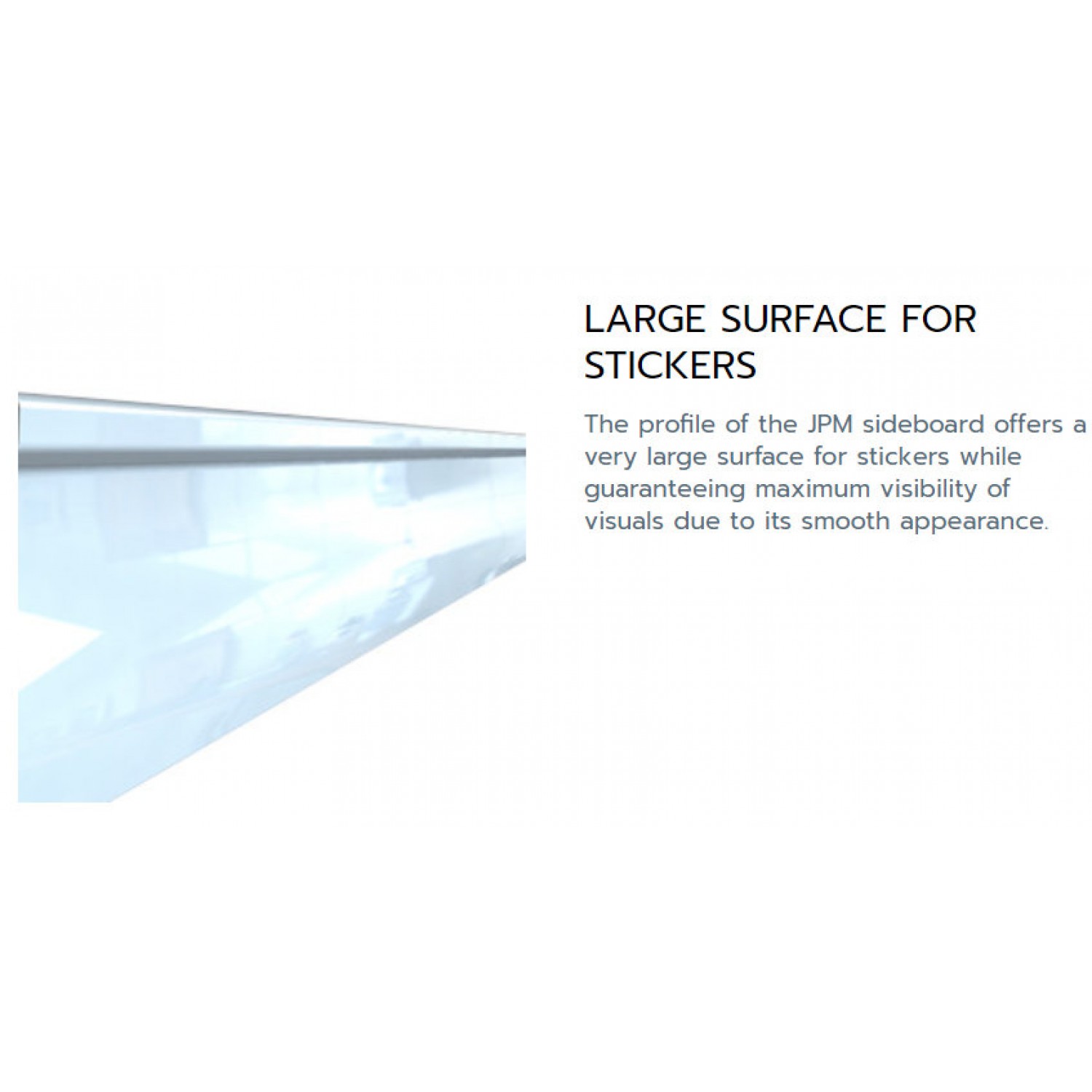

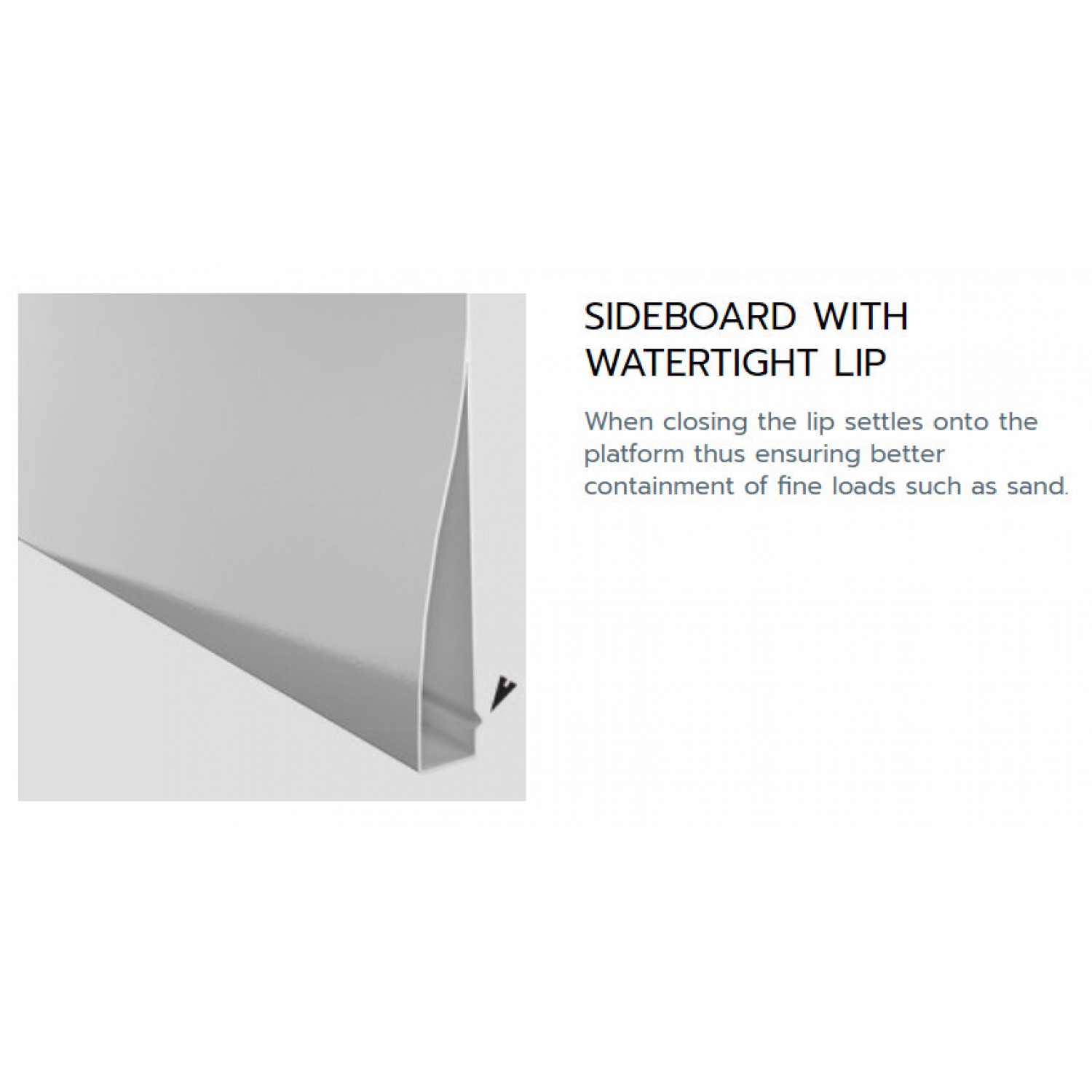

* Sideboards in steel S355, height 350 mm, thickness 2 mm, fold-down, removable
* 2 x 2 sideboards from exterior length 3700 mm

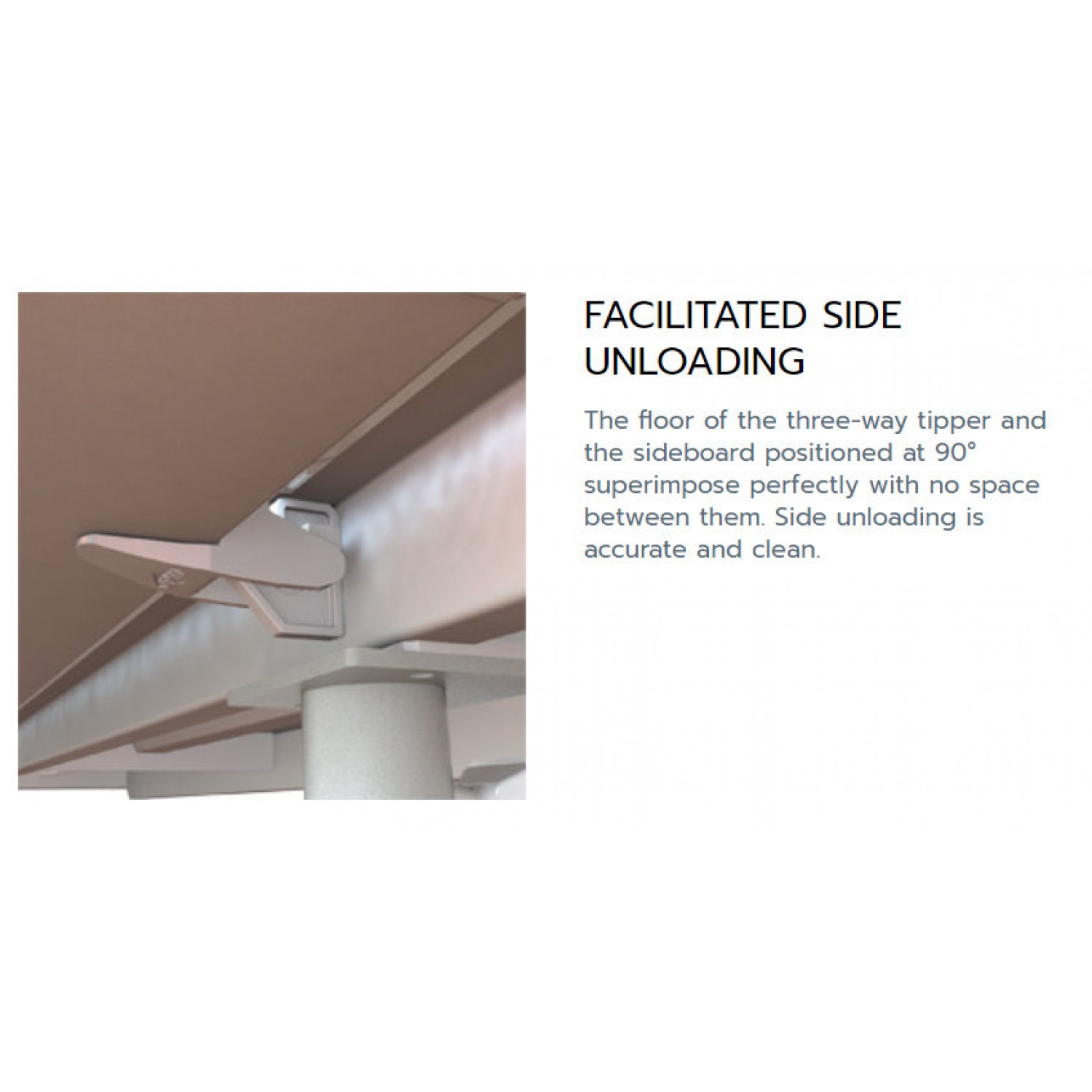

* Opening of sideboards at 90° and 180°, mechanical locking of sideboards at 90° providing continuous alignment between platform and sideboard
* Integrated closing of sideboards
* Front face steel S355, height 450 mm, thickness 2 mm

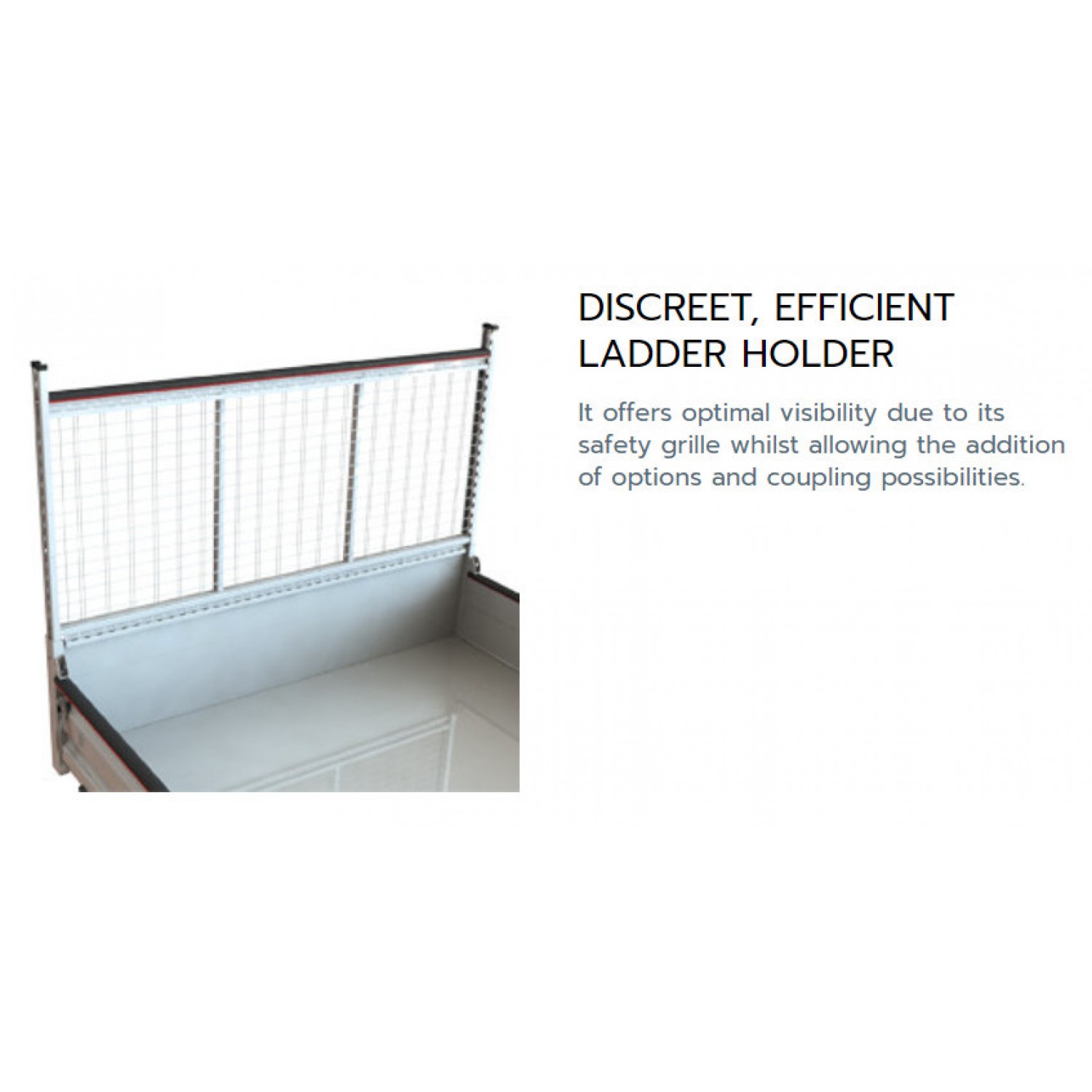

* Cab protection in galvanised steel, grille (section 4.5 mm), removable

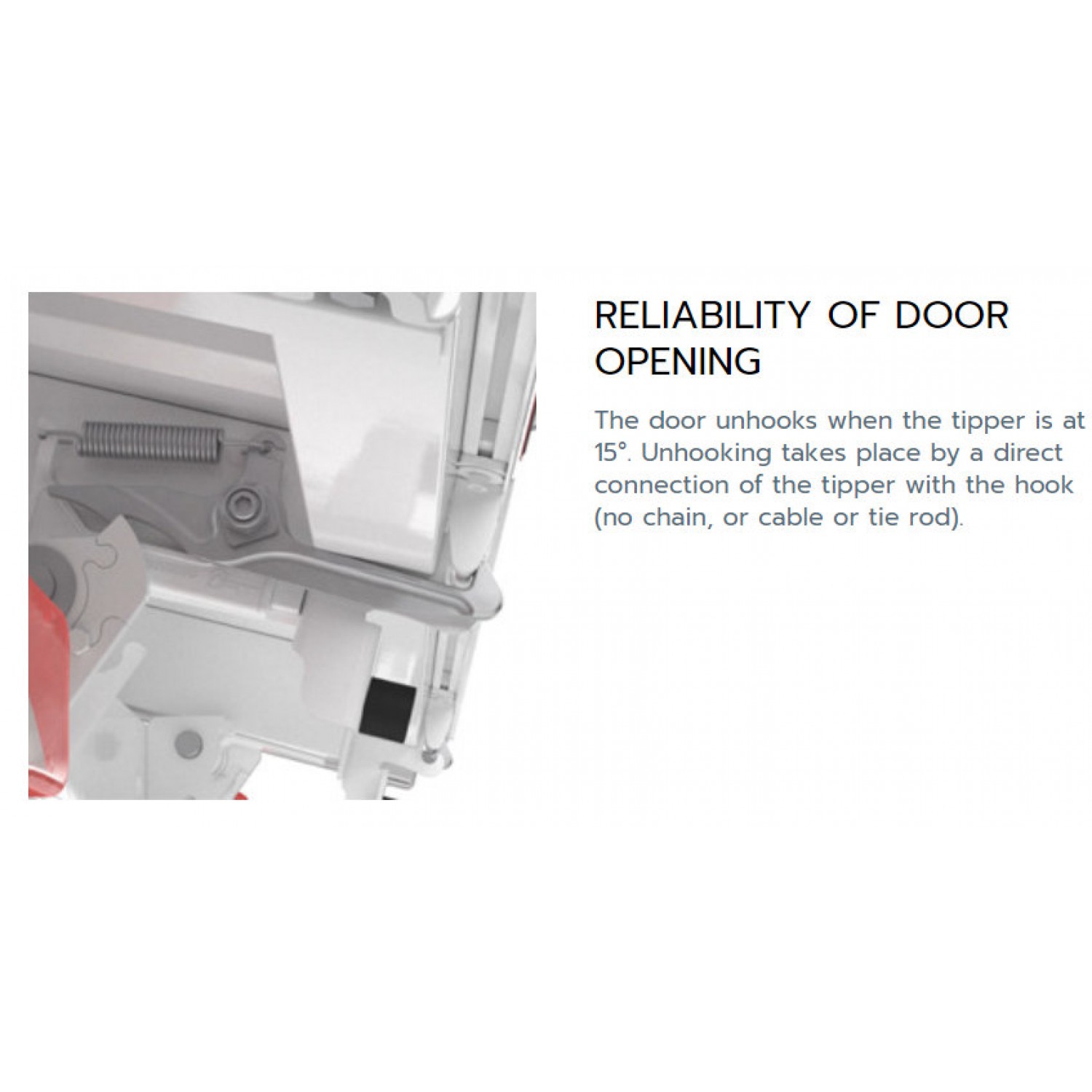

* Rear door in steel S355, height 450 mm, thickness 2 mm, automatic opening (doorway 520 mm) by cam (doorway 520 mm) at 15°
* Rubber opening stops on rear door

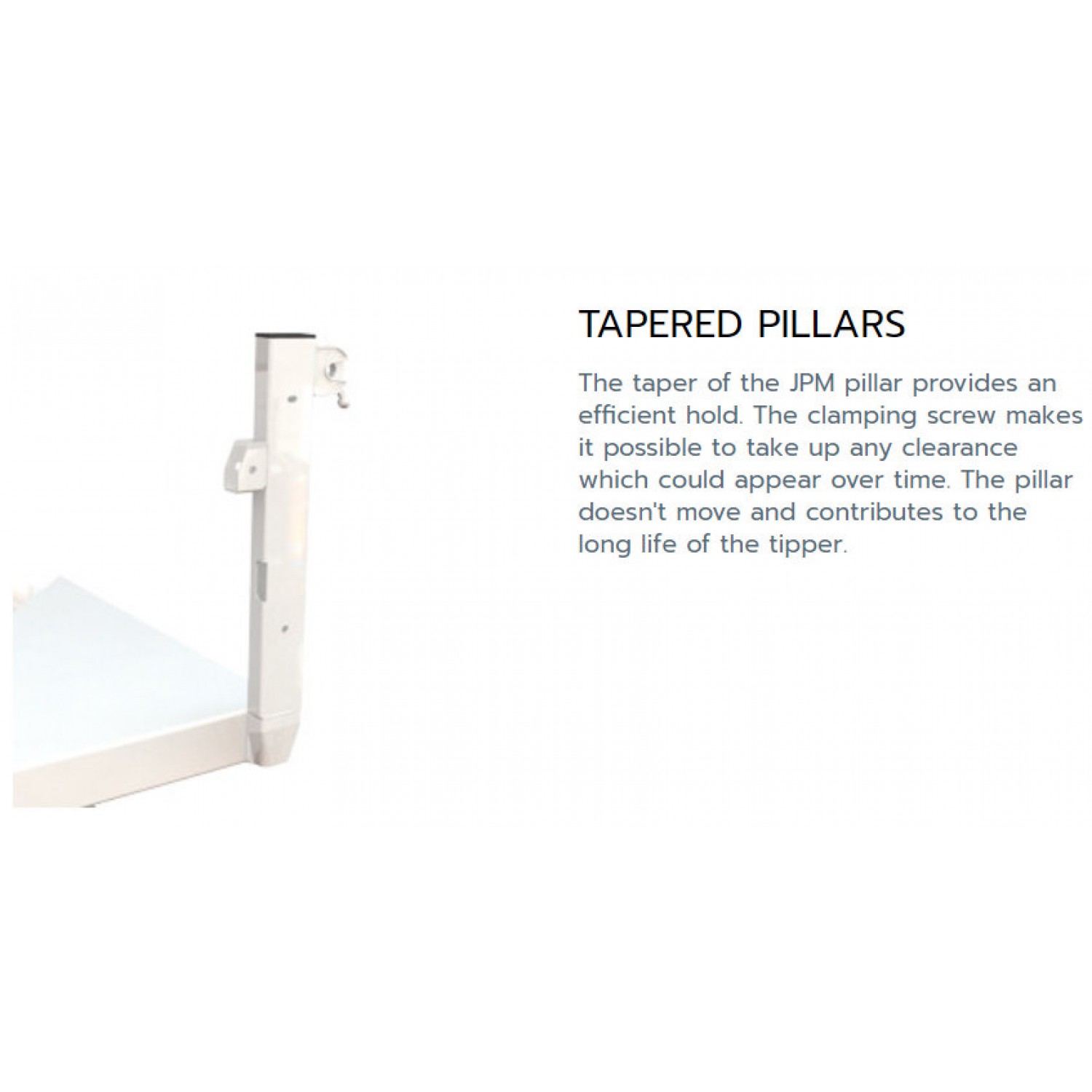

* Rear pillars in galvanised steel, thickness 3mm, removable, with 12 mm fixing bolt and conical fitting
* HDPE (High Density Polyethylene) wraparound mudguards with raw aluminium support
* Authorised aluminium double bar side protections black powder paint
* Geomet treated bolts (5 times more resistant than standard galvanising)

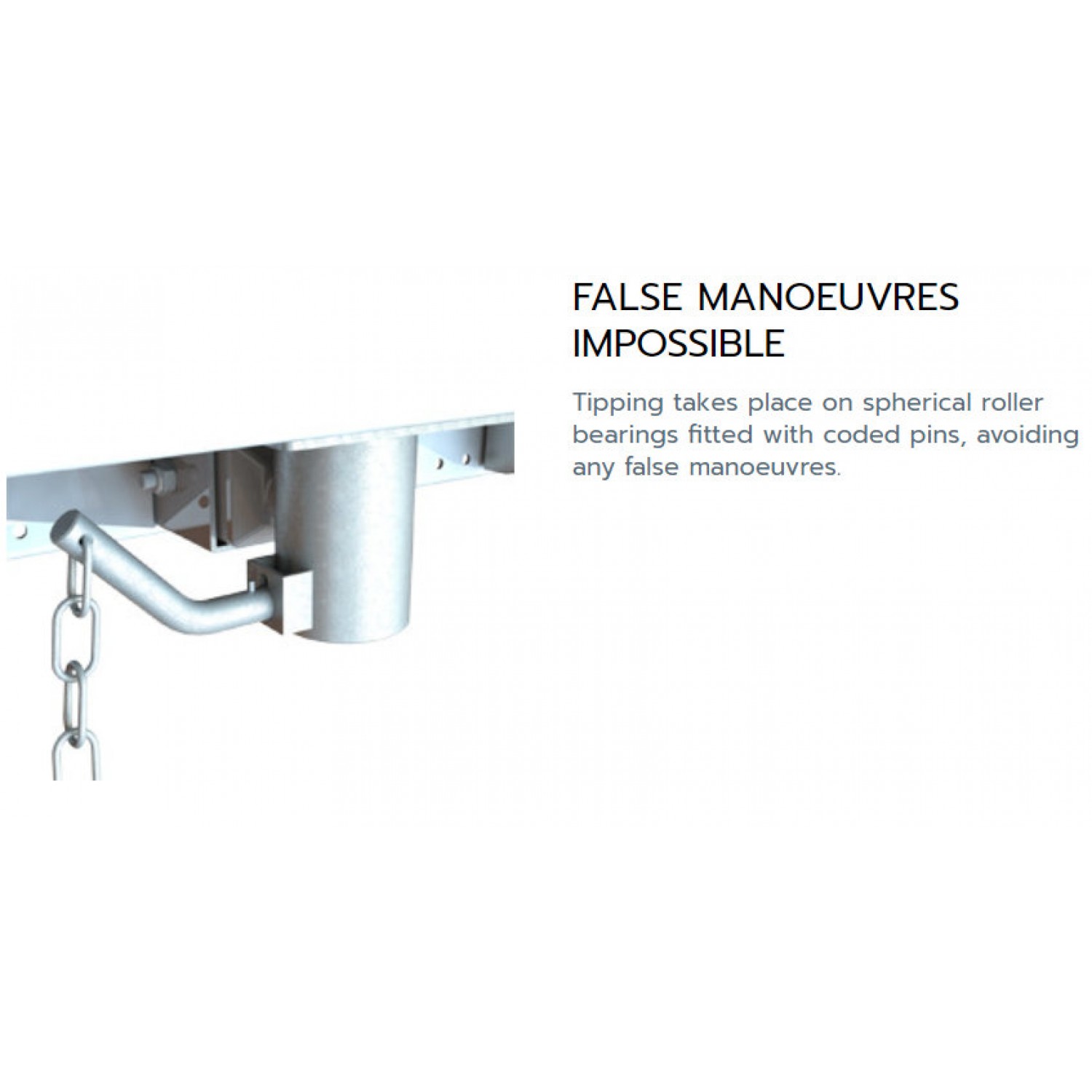

* Tipping on spherical roller bearings fitted with coded pins (avoiding any false manoeuvres)
* Short dumping overhang: 330 mm

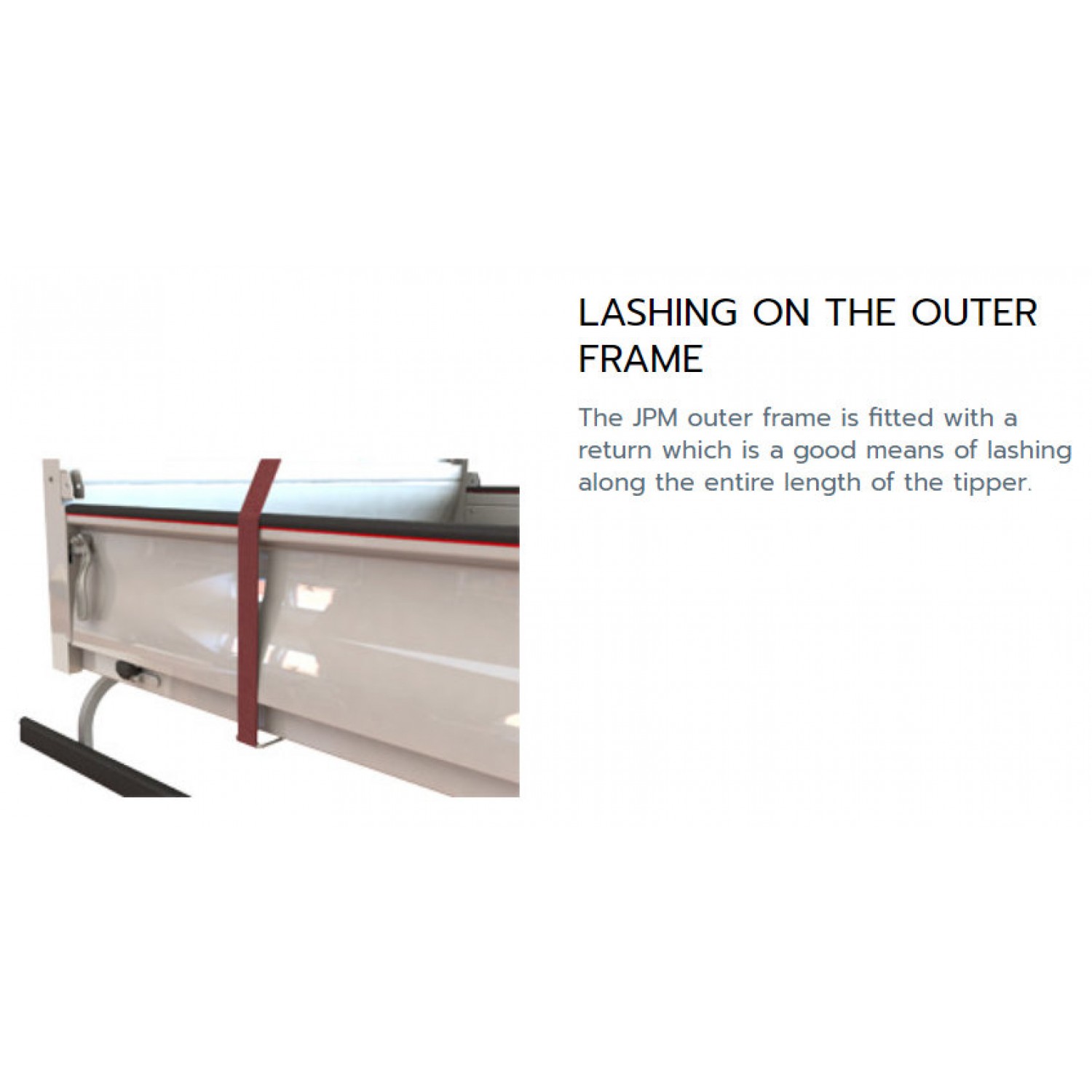

* Outer frame adapted to lashing

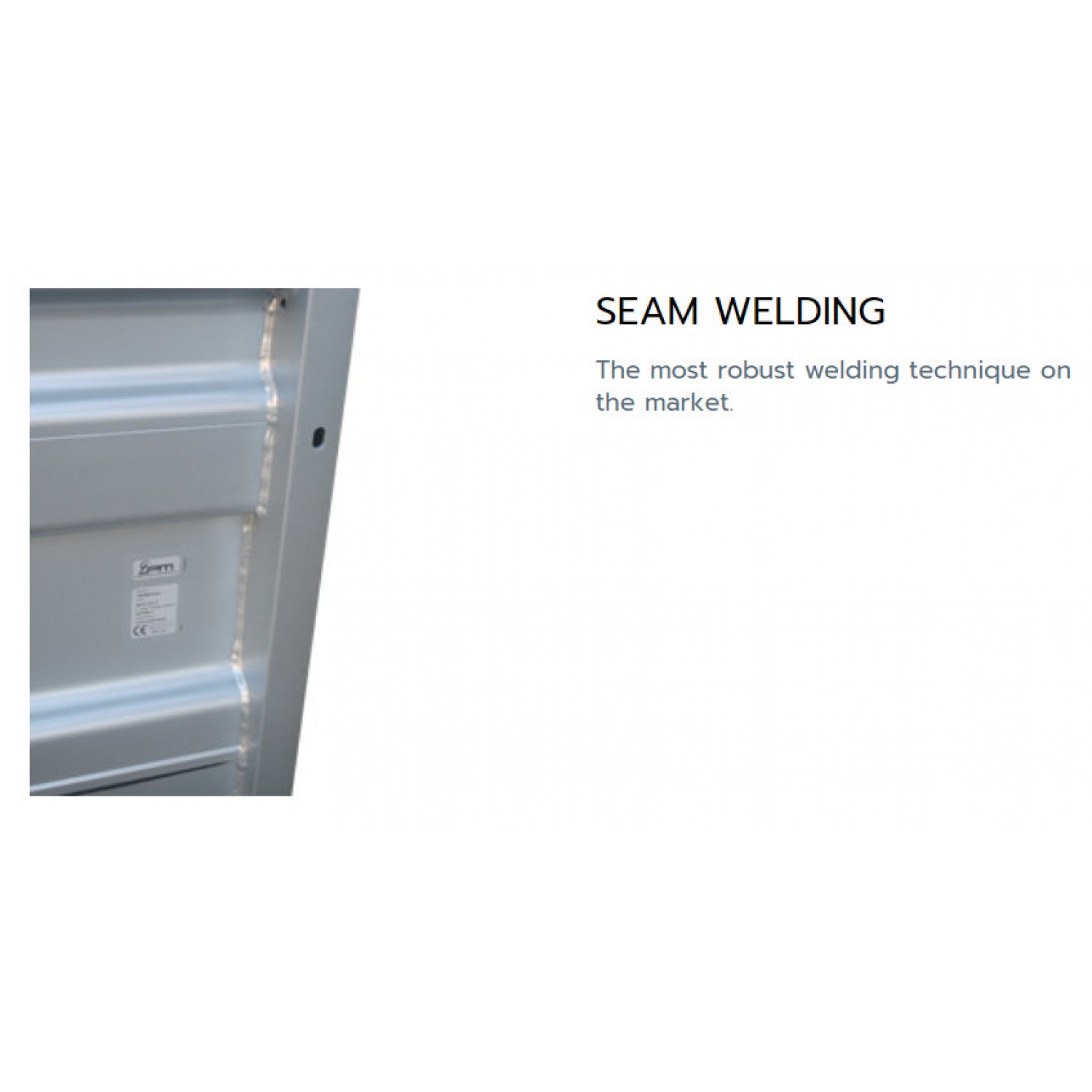

* Seals between elements that are not continuously welded
Subframe

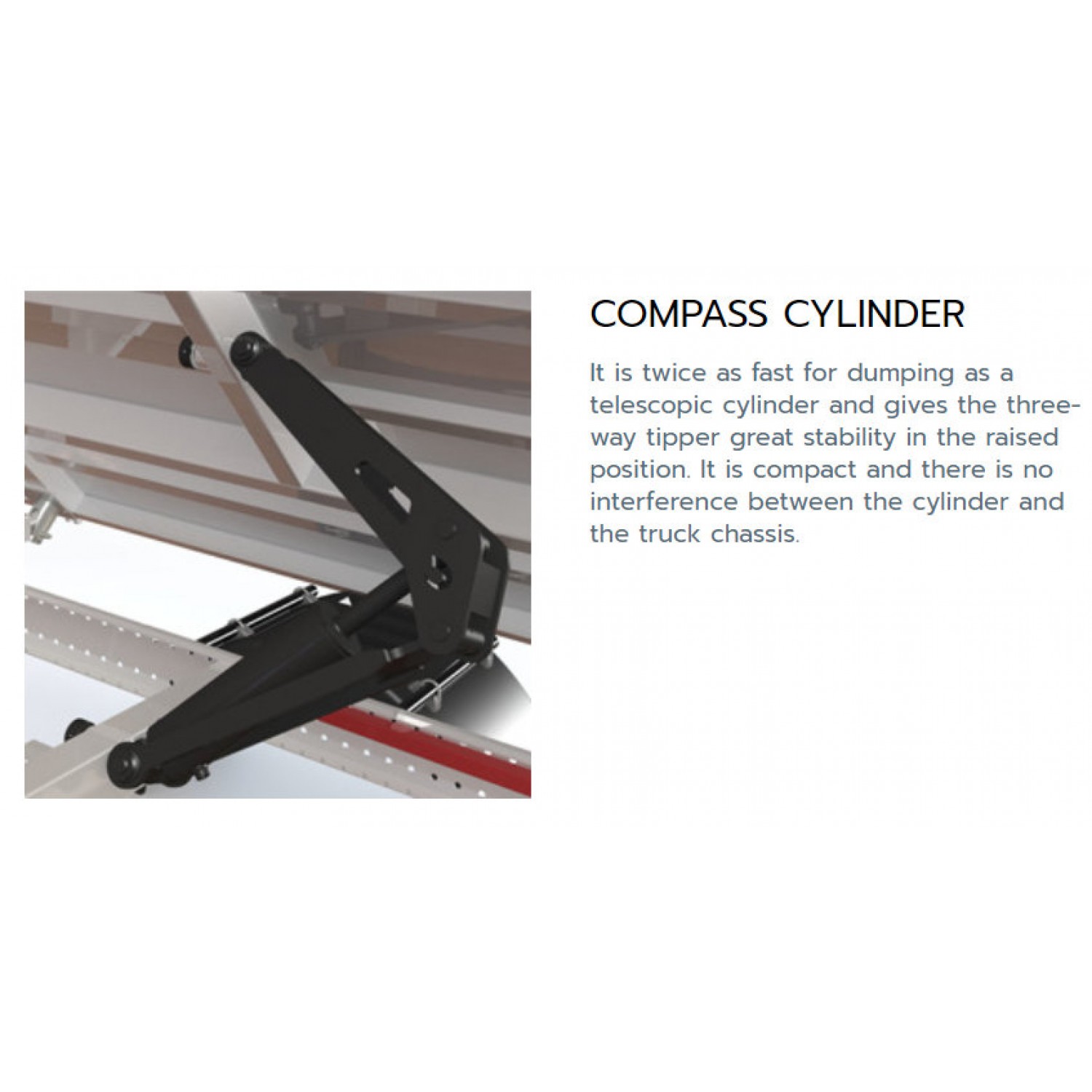

* Tipper in steel S355, thickness 4 mm or 5 mm depending on length* Tipping by COMPASS CYLINDER (no excess under subframe)
* 48° rear tilt angle
* Electrically driven pump unit 12 volts or 24 volts depending on the chassis
* 3 or 7 litre tank
* Hydraulic pressure 320 bars
* Wired remote control in cab
Safety
* Safety solenoid valve on cylinder* Circuit breaker
* Safety stand

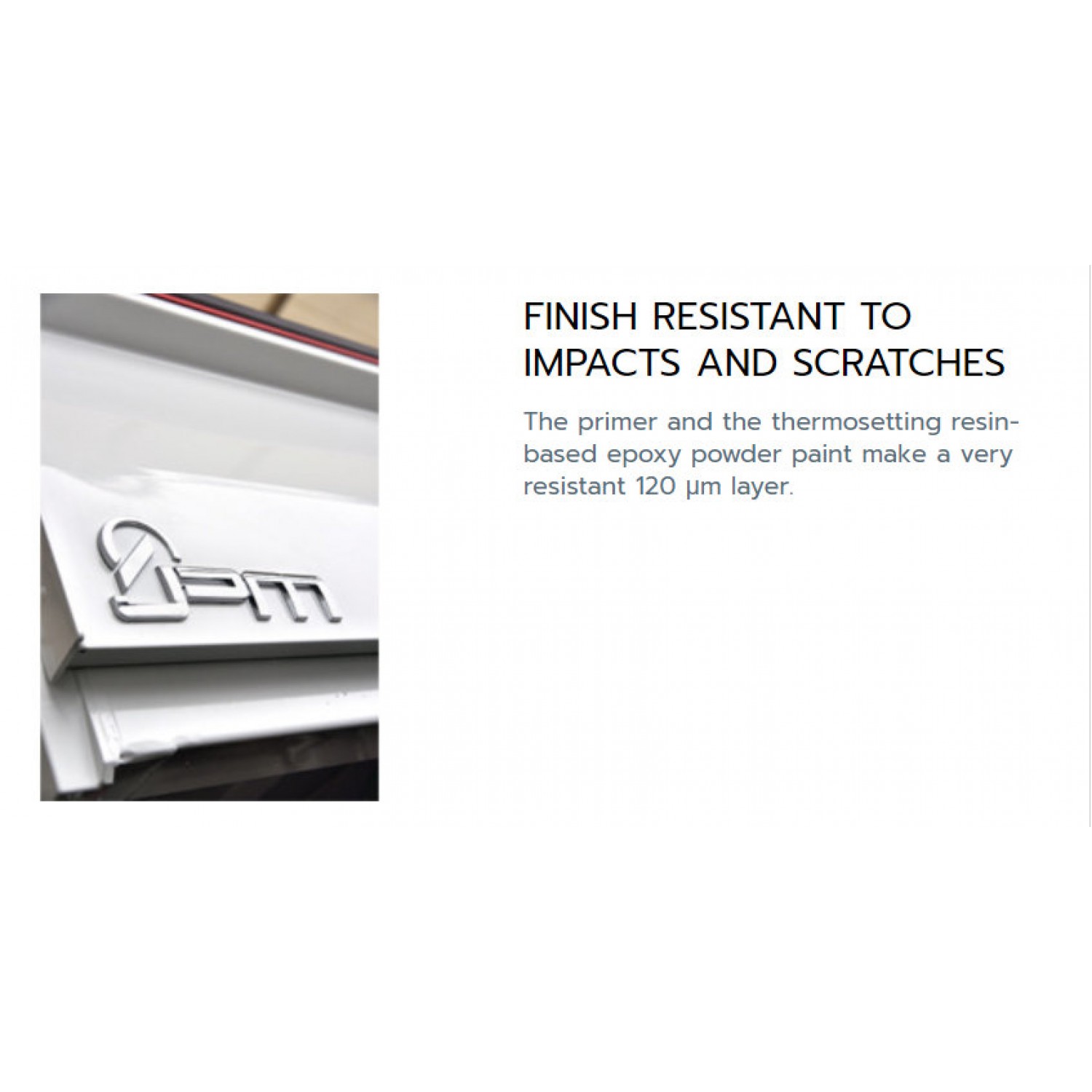

Finish
* DKP sheet + Shot blasting* 60 µm epoxy powder primer
* 60 µm Powder paint
